Generate Euler Colors¶
Group (Subgroup)¶
Generic Filters (Misc)
Description¶
This filter will generate an RGB color for each Cell that is calculated from the Euler Angles for the cell. If you want IPF Colors this is NOT the filter for you, use the Generate IPF Colors filter. The algorithm is to assign a color component based on a scale of the following:
| Euler Component | Min Value (Radians) | Max Value (Radians) | Calculation |
|---|---|---|---|
| phi1 (Euler 0) | 0 | 2 Pi | phi1 / 2Pi * 255 |
| Phi (Euler 1) | 0 | Pi | Phi / Pi * 255 |
| phi2 (Euler 2) | 0 | 2 Pi | phi2 / 2Pi * 255 |
Example¶
Given the set of Euler Angles (0.43765, 0.265830, 5.583250) would result in RGB Values of [17, 21, 226].

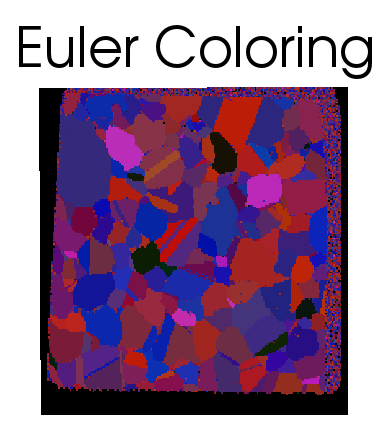

@image latex EulerColor_1.png " " width=6in
@image latex IPFColor_1.png " " width=6in
Input Options¶
None
Required DataContainers¶
Voxel DataContainer
Required Objects¶
| Type | Default Name | Description | Comment | Filters Known to Create Data |
|---|---|---|---|---|
| Cell | CellEulerAngles | These are the angles used to determine the colors | Read H5Ebsd File (IO), Match Crystallography (SyntheticBuilding) |
Created Objects¶
| Type | Name | Description | Comment |
|---|---|---|---|
| Cell | EulerColors | The RGB colors are encoded as an unsigned char triplet |
Authors¶
Example Pipelines¶
License & Copyright¶
Please see the description file distributed with this Plugin
