Export GBCD Pole Figure (VTK)¶

Group (Subgroup)¶

IO (Output)

Description¶

This Filter creates a .vtk file that can be used in ParaView to visualize a Grain Boundary Character Distribution (GBCD) pole figure. The user must select the relevant phase for which to write the pole figure by entering the phase index.

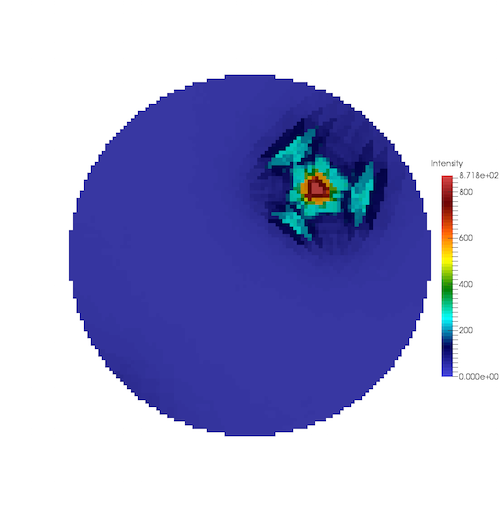

Regular Grid Visualization of the Small IN100 GBCD results

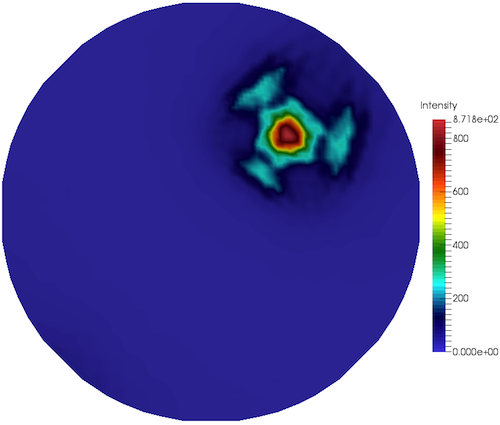

Using ParaView's Threshold filter + Cells to Points + Delaunay2D Filters

Parameters¶

Name	Type	Description
Phase of Interest	int32_t	Index of the Ensemble for which to plot the pole figure
Crystal Structure	Enumeration	Crystal structure for GBCD. Currently supports from Hexagonal-High 6/mmm or Cubic-High m-3m symmetries
Misorientation Axis-Angle	float (4x)	Axis-Angle pair values for drawing GBCD
Output Regular Grid VTK File	File Path	The output .vtk file path

Required Geometry¶

Triangle

Required Objects¶

Kind	Default Name	Type	Component Dimensions	Description
Ensemble Attribute Array	GBDC	double	(n,m,l,o,q,r)	5 parameter GBCD data. The 6^th component is used internally to track the northern vs. southern hemisphere of the Lambert sphere

Created Objects¶

None

Example Pipelines¶

(04) SmallIN100 GBCD

License & Copyright¶

Please see the description file distributed with this Plugin
