Export Triangle Geometry¶

Group (Subgroup)¶

IO (Output)

Description¶

This filter creates 2 files from the Vertices and Triangles from a Triangle Geometry. The basic form of the files is simple ASCII where the vertices are a "Shared Vertex List" and the triangles consist of 3 values where each value is the index into the vertex list.

Example Nodes File

# All lines starting with '#' are comments
# DREAM.3D Nodes file
# DREAM.3D Version 6.1.92.0613671
# Node Data is X Y Z space delimited.
Node Count: 57920
 0.00000  0.00000  0.00000
 0.00000  0.50000  0.00000
 0.00000  0.00000  0.50000
 0.00000  0.50000  0.50000
             ..

Example Triangles File

# All lines starting with '#' are comments
# DREAM.3D Triangle file
# DREAM.3D Version 6.1.92.0613671
# Each Triangle consists of 3 Node Ids.
# NODE IDs START AT 0.
Node Count: 57920
Max Node Id: 57919
Triangle Count: 120774
0 1 2
1 3 2
0 2 4
4 2 5
0 4 1
4 6 1
4 5 7

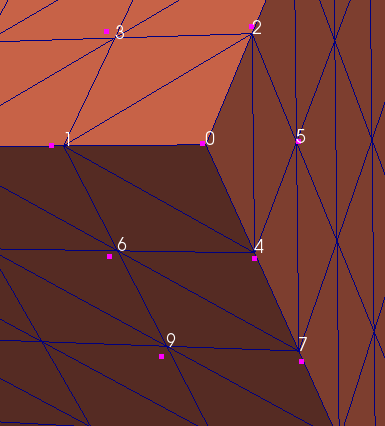

Rendering of Nodes from above file example

Parameters¶

Name	Type
Output Nodes File	Output File Path
Output Triangles File	Output File Path

Required Geometry¶

Triangle

Required Objects¶

Kind	Default Name	Type	Component Dimensions	Description
Data Container	None	N/A	N/A	Data Container in which to place the created Triangle Geometry

Created Objects¶

None

Example Pipelines¶

License & Copyright¶

Please see the description file distributed with this Plugin
